Buses

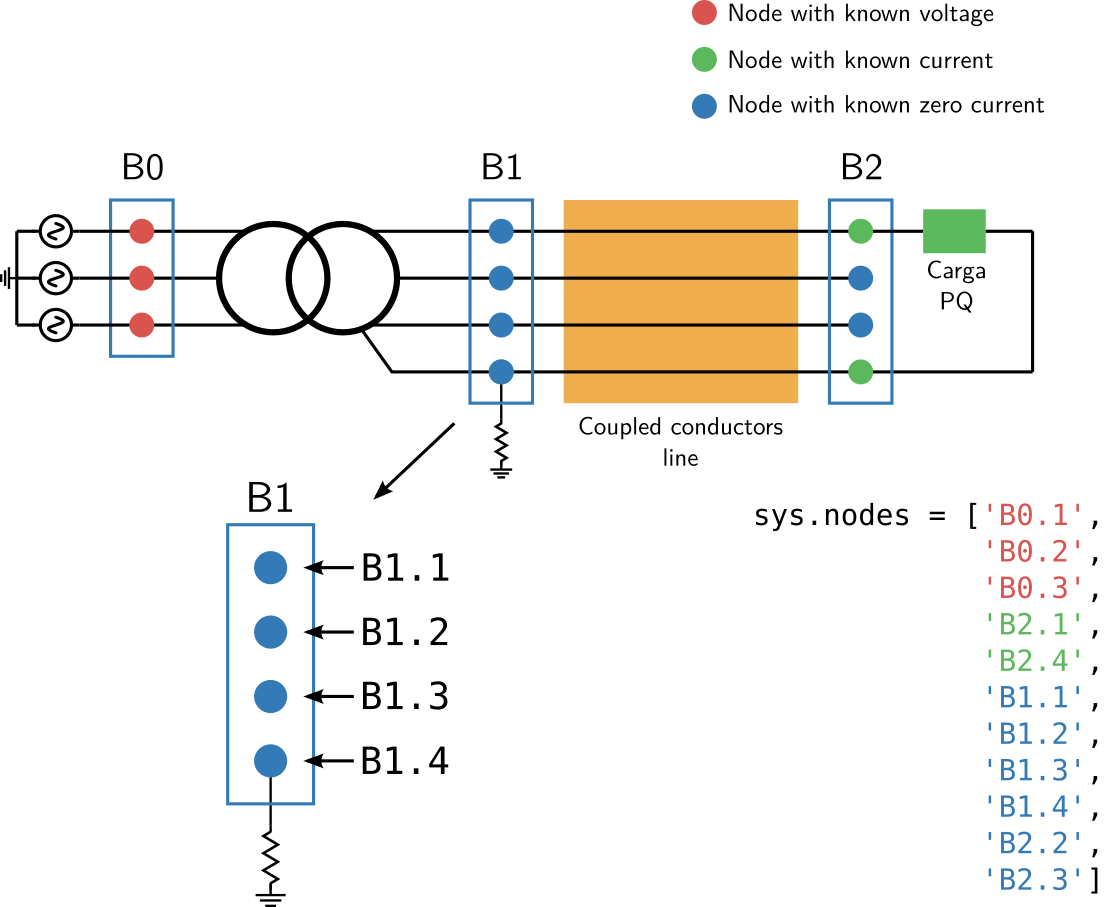

Buses are composed by nodes.

_images/buses_nodes.png
"buses":[
                {"bus": "Bus_0",  "pos_x": 0, "pos_y":   0, "units": "m", "U_kV":20.0},
                {"bus": "Bus_1",  "pos_x": 0, "pos_y":  10, "units": "m", "U_kV":0.4},
                {"bus": "Bus_2",  "pos_x": 0, "pos_y": 200, "units": "m", "U_kV":0.4}
                ],

where:

  • "bus": name of the bus
  • "pos_x": x position of the bus
  • "pos_y": y position of the bus
  • "units": units for positions (only m is available)
  • "U_kV": RMS phase-phase base voltage (kV)
